Model: Gene Flash
Brand: Syngene

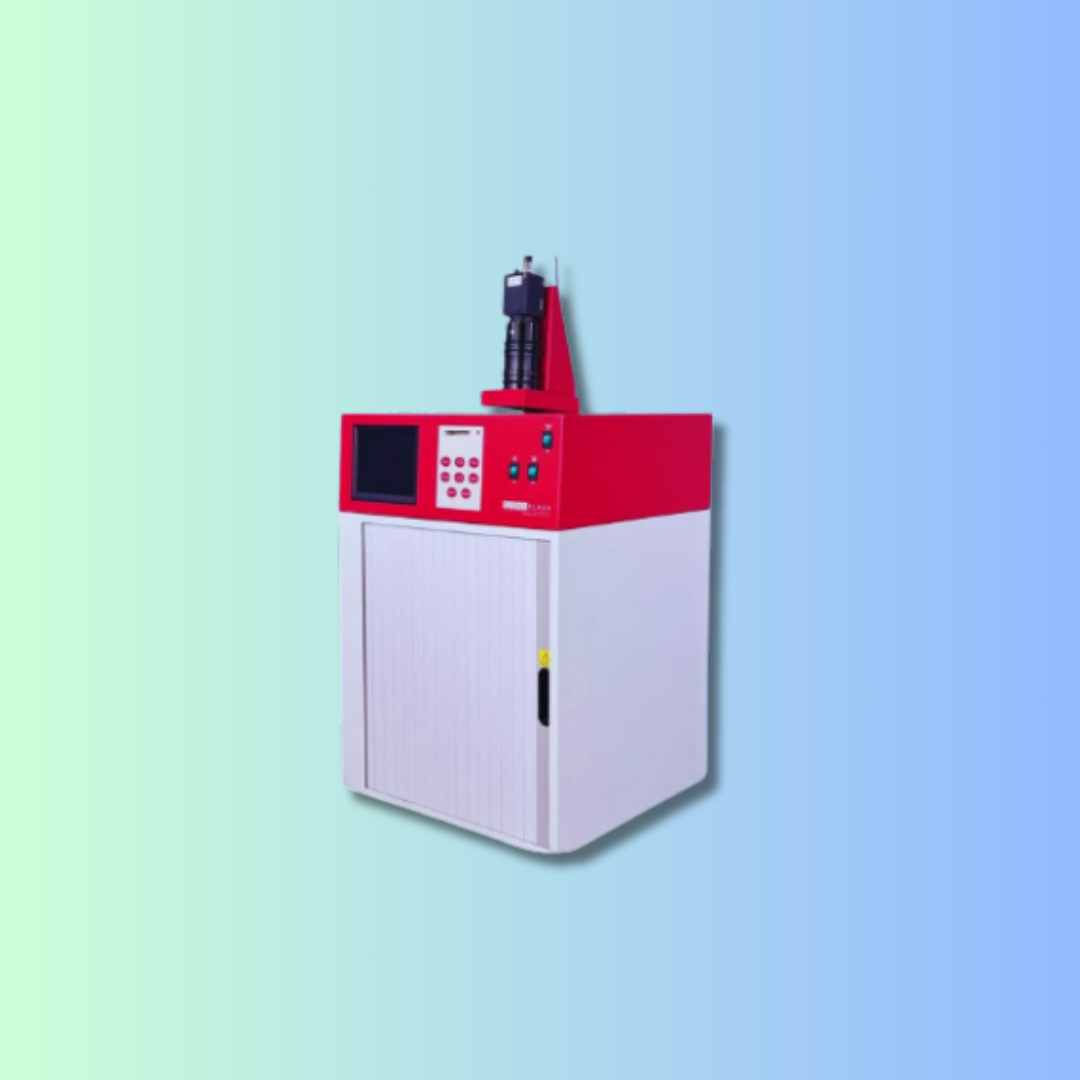

Gene Flash System
Status: Currently Under Maintenance
Gel imaging systems, also known as gel documentation systems or gel docs, refers to equipment widely used in molecular biology laboratories for capturing high-quality images of nucleic acid and protein suspended within electrophoresis polyacrylamide or agarose gels/plate/membrane, western blots, as well as other samples like culture plates, in order to obtain a visual record of their results for further archiving, analysis, and data sharing. Generally, a gel doc includes an ultraviolet (UV) light transilluminator, a hood or a darkroom to shield external light sources and protect the user from UV exposure, a computer, software and a high-performance CCD camera for image capturing. Digital imaging of gels not only provides the benefits of convenient and effective data storage, but also allows advanced quantification and analysis.
Specification:
CCD-based gel documentation system 8-bit
768 X 582 pixel black-and-white camera with a microprocessor-controlled dark room
accepts most small-to-medium bench-top UV transilluminators (up to 25 X 30 cm gels)
large sliding door in the darkroom allows for easy access of the transilluminator
dark room features integrated color LCD display 8-key panel controls the camera, printer, saves files, and changes system settings
On-Off buttons located on front of dark room enclosure
UNDER MAINTENANCE
