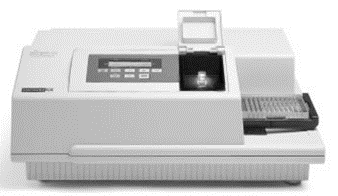

MicPlate05
Menu
ID
Brand
Model
Intro
• Measure the presence of components in the study sample
• Can run both standard spectrophotometer and microplate reader applications on the same instrument
Application
Suitable for:
• DNA quantitation
• Colorimetric assays
• ELISAs/EIAs
• Immunoassays
• Drug dissolution profiles
• Enzyme kinetics (e.g., Ki, Km, etc.)
Technical
Specification
• Photometric performance
• Wavelength range 190–1000 nm
• Wavelength selection Monochromator, tunable in 1.0 nm increments
• Wavelength bandwidth 2 nm
• Wavelength accuracy ±1.0 nm
• Wavelength repeatability ±0.2 nm
• Photometric range 0–4.000 OD
• Photometric resolution 0.001 OD
• Photometric accuracy (microplate) < ±0.006 OD ±1.0%, 0–2 OD
• Photometric accuracy (cuvette) < ±0.005 OD ±1.0%, 0–2 OD
• Photometric precision < ±0.003 OD ±1.0%, 0–2 OD
• Baseline flatness < 0.001 OD
• Stray light < 0.05% @ 230 nm
• Light source Xenon flash lamp
• Microplate read time (normal mode)
o 96 wells in 9 seconds
o 384 wells in 29 seconds
• Microplate read time (speed read mode)
o 96 wells in 5 seconds
o 384 wells in 16 seconds
• Temperature regulation
o Temp. range Ambient +4°C to 45°C
o Temp. uniformity (microplate) ±0.5°C at 37°C
Location
Makmal Nukleus, Aras 9, Jabatan Fisiologi, Blok Praklinikal
Serum, organ and cell
